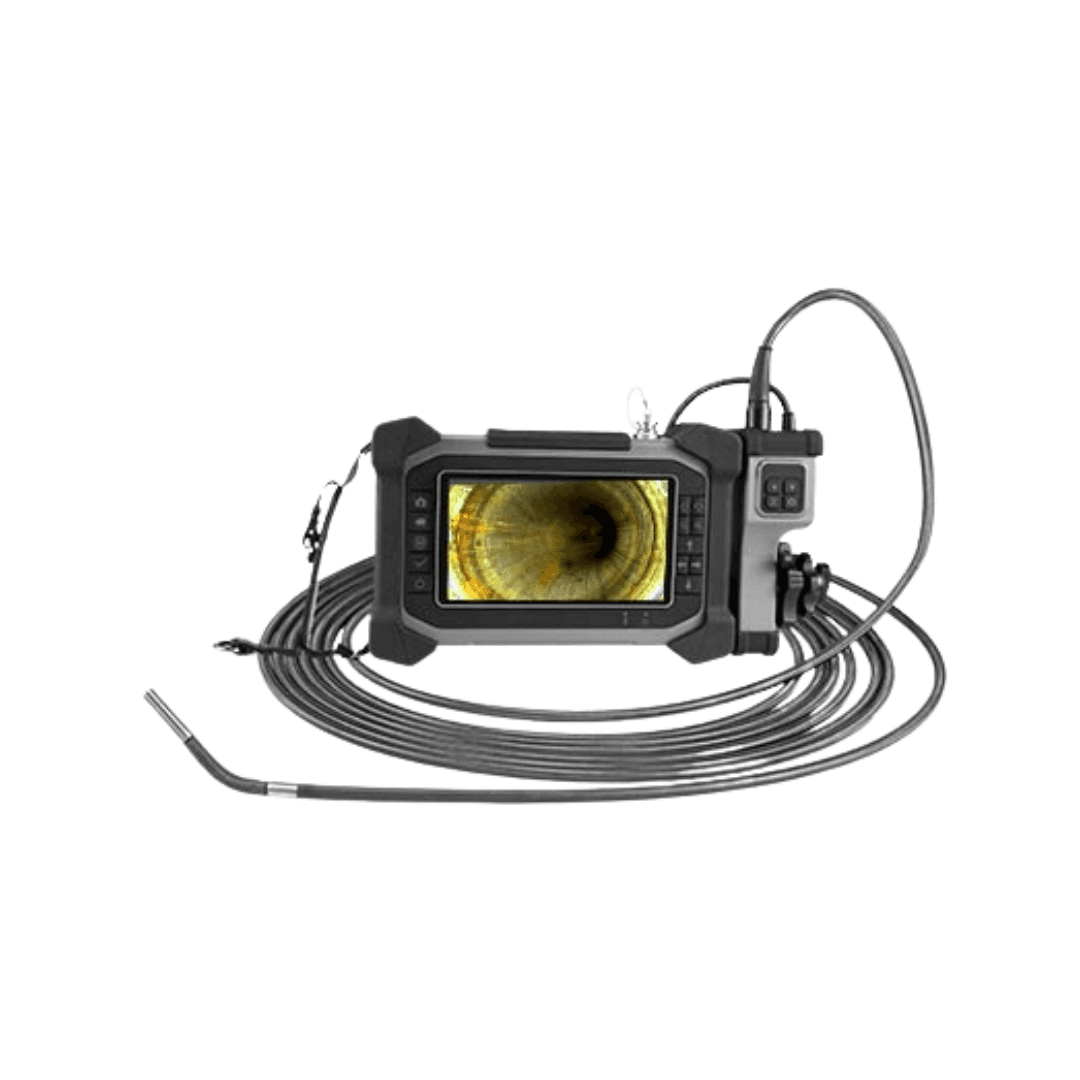

AE-DDX Industrial Borescope Videoscope System
Industrial inspection equipment
Overview
The AE-DDX is a high-definition industrial borescope (videoscope) system designed for precise internal inspection of pipelines, machinery, components, and confined industrial spaces. Engineered for performance and ease of use, this system enables non-destructive inspection (NDT) without dismantling equipment, reducing downtime and maintenance costs.
Equipped with a high-resolution camera probe, advanced articulation control, and powerful 24W metal halide light source, the AE-DDX delivers clear and detailed inspection images even in dark and complex environments. The 7-inch full-color LCD display with intuitive controls ensures real-time monitoring, recording, and analysis for efficient inspection workflows.
With a flexible tungsten-braided probe (up to 20 meters) and 4-way articulation, the system allows smooth navigation through narrow and complex inspection paths. It is suitable for pipe diameters ranging from 10mm to 200mm, making it ideal for industries such as power plants, oil & gas, manufacturing, aerospace, and industrial maintenance.
Key Highlights
- Industrial borescope (videoscope) inspection system
- High-definition inspection camera with advanced imaging
- 4-way articulation probe (up, down, left, right)
- Flexible tungsten-braided insertion tube
- Suitable for pipe diameters from 10mm to 200mm
- Long inspection cable up to 20 meters
- 7-inch full-color LCD inspection display
- 24W high-intensity metal halide light source
- Real-time video, image, and inspection recording
- HDMI output for external display connectivity
- 3X live zoom during inspection
- Image rotation, reflection, and measurement features
- Interchangeable tip adapters (forward & side view)
- Resistant to oil, grease, and industrial conditions
- Portable system with rugged carrying case
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Product Type | Industrial Borescope / Videoscope |
| Probe Diameter | 8 mm / 10 mm |
| Probe Length | Up to 20 meters |
| Articulation | 4-way (≥90° bending) |
| Viewing Angle | 120° |
| Depth of Field | 5 mm to infinity |
| Lighting | 24W Metal Halide Light Source |
| Probe Material | Tungsten Braided |
| Waterproof | Water & Dust Resistant |
| Display | 7" Full Color LCD/TFT |
| Storage | 32GB SD Card |
| Video Output | HDMI |
| Zoom | 3X Live Zoom |
| Video Format | Movie Recording Supported |
| Power Supply | 230V AC ±10%, 50Hz |
| Operating Temperature | -10°C to 80°C |
| System Weight | ≤8 kg (unit), ≤14 kg (with case) |
Applications
Power plant pipeline and turbine inspection
Oil & gas pipeline and vessel inspection
Aerospace and automotive engine inspection
Manufacturing and industrial maintenance inspection
