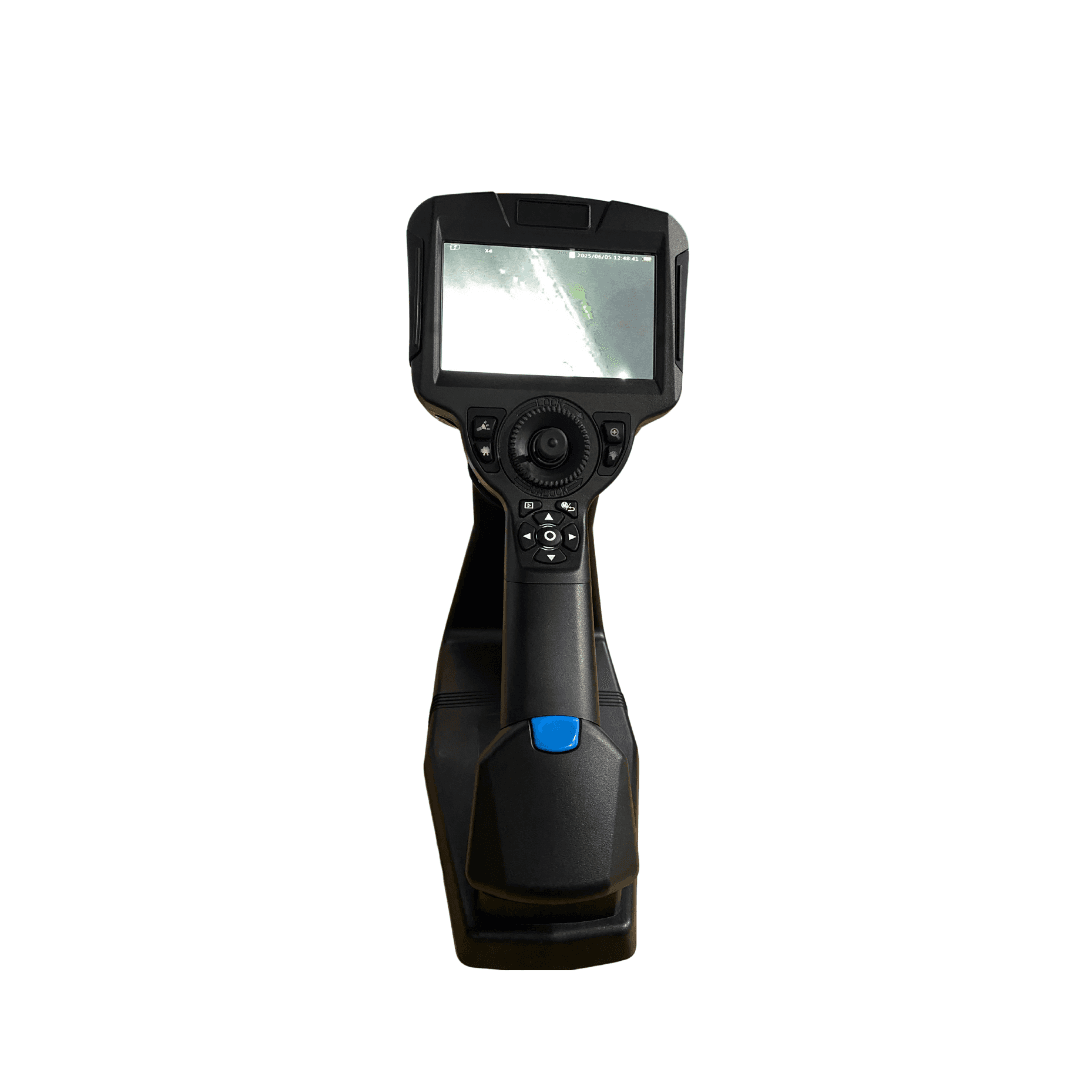

AE-DGX Industrial Borescope Videoscope System
Industrial inspection equipment
Overview
The AE-DGX is a next-generation industrial borescope (videoscope) system engineered for high-precision internal inspection of machinery, pipelines, turbines, and complex industrial components. Designed for advanced inspection workflows, this system enables non-destructive testing (NDT) with superior imaging clarity and flexible probe configurations.
Equipped with a high-definition imaging system, interchangeable probes, and intelligent software interface, the AE-DGX delivers accurate inspection results even in challenging environments such as low-light, reflective surfaces, and confined spaces. Its touchscreen interface with advanced image processing features like noise reduction, glare suppression, and measurement tools enhances inspection accuracy and usability.
With support for multiple probe diameters (as small as 1.8mm) and various articulation options, the system adapts to a wide range of industrial applications including power plants, petrochemical industries, aerospace, wind energy, automotive manufacturing, and heavy engineering inspection.
Key Highlights
- Advanced industrial borescope inspection system
- High-definition videoscope with intelligent imaging software
- Multiple probe diameter options (1.8mm to 8mm+)
- Interchangeable probe system for flexible applications
- 4-way articulation for precise inspection control
- Touchscreen interface with interactive controls
- Advanced image processing (noise reduction, glare suppression)
- Real-time video, image capture, and playback
- Built-in measurement and annotation tools
- Wide viewing angle (>120°) for detailed inspection
- High-intensity LED illumination system
- HDMI and USB connectivity for data transfer
- Support for SD card storage (up to 64GB)
- Portable handheld inspection system
- Suitable for power, aerospace, petrochemical, and manufacturing industries
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Product Type | Industrial Borescope / Videoscope |
| Camera Resolution | Up to 1080P (varies by probe) |
| Probe Diameter | 1.8 mm to 8.4 mm |
| Probe Length | 1 m to 10 m (varies by model) |
| Articulation | 2-way / 4-way (depending on probe) |
| Viewing Angle | >120° |
| Depth of Field | 5 mm to infinity |
| Lighting | High-intensity LED / Fiber illumination |
| Probe Material | Stainless Steel / Flexible insertion tube |
| Display | 5" LCD Touch Screen |
| Display Resolution | 1280 × 720 |
| Storage | SD Card (up to 64GB) |
| Connectivity | HDMI, USB |
| Image Format | JPG |
| Video Format | AVI |
| Frame Rate | 30 fps |
| Battery | 3.7V 9000mAh |
| Battery Backup | 4+ hours |
| Charging Time | ~5 hours |
| Operating Temperature | -10°C to 80°C |
Applications
Power plant turbine and pipeline inspection
Aerospace engine and component inspection
Petrochemical pipeline and vessel inspection
Automotive and manufacturing inspection
