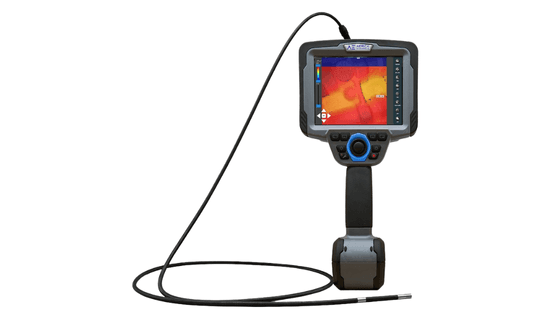

AE-DSV PRO 3D Measurement Industrial Borescope
Industrial inspection equipment
Overview
The AE-DSV PRO is an advanced 3D measurement industrial borescope (videoscope) system designed for high-precision internal inspection and dimensional analysis of industrial components, pipelines, and critical machinery. This next-generation system integrates binocular photogrammetry technology, HD imaging, and intelligent measurement software to deliver accurate inspection and defect analysis.
Unlike conventional borescopes, the AE-DSV PRO enables real-time 3D measurement of defects such as cracks, corrosion, wear, and internal damage, allowing engineers to quantify results rather than rely only on visual inspection. Its high-definition imaging system with LED illumination ensures clear visualization even in complex, low-light industrial environments.
The system features a portable handheld controller with touchscreen interface, joystick-controlled articulation, and interchangeable probes, making it ideal for inspection in power plants, aerospace, automotive, petrochemical, and heavy industrial applications.
Key Highlights
- 3D measurement industrial borescope system
- Advanced binocular photogrammetry technology
- Real-time defect measurement and analysis
- High-definition videoscope inspection system
- 4-way articulation with joystick control
- Interchangeable probe system (3.9mm / 6mm options)
- Tungsten braided flexible insertion tube
- Probe length up to 7 meters
- High-intensity LED illumination (up to 100,000 hours life)
- 6.5-inch HD touchscreen display
- Real-time video, image, and data recording
- 3D modeling and measurement interface
- Measurement functions (point, line, area, depth, profile)
- Built-in temperature sensor with alarm system
- USB, HDMI, and Wi-Fi connectivity support
- Portable industrial inspection system
Request a Quote
Get pricing, availability, and technical guidance.
Request QuoteResponse within 1 business day.
Technical Specifications
| Product Type | 3D Measurement Industrial Borescope |
| Camera Resolution | Up to 1MP HD |
| Probe Diameter | 3.9 mm / 6 mm |
| Probe Length | 1.5 m to 7 m |
| Articulation | 4-way (360° joystick control) |
| Viewing Angle | 120° |
| Depth of Field | 8 mm to 80 mm |
| Lighting | High-intensity LED |
| Light Life | 100,000 hours |
| Probe Material | Tungsten braided |
| Display | 6.5" HD Touchscreen |
| Display Resolution | 1024 × 768 |
| Storage | 64GB / Expandable |
| Video Format | AVI (1280 × 720) |
| Image Format | JPG (1280 × 720) |
| Connectivity | HDMI, USB, Wi-Fi |
| Battery | 11.1V 7000mAh Li-ion |
| Battery Backup | 2+ hours |
| Measurement Accuracy | Up to 0.01 mm |
| Error Rate | 2–5% |
| Operating Temperature | -20°C to 50°C |
| Protection Rating | IP65 |
Applications
Turbine blade measurement
Crack and corrosion depth analysis
Weld and dimensional inspection
Quality control and NDT inspection
